LVC Series
Fully automated 3-axis measurement systems
Fully automated 3-axis measurement systems
Extraordinarily capable, and surprisingly easy to use, Vision Engineering’s LVC400 and LVC200 fully automated 3-axis measuring systems have the power and versatility to meet the needs of even the most demanding manufacturing environments. With a measurement range of up to 16″ x 12″ x 8″ ( 400mm x 300mm x 200mm), they are ideal for measuring large components or, just as easily, batches of small components.
Rapid, cost-efficient measurements
A motorized measuring stage and motorized zoom lens work together to automate the movement of the system, reducing measurement time and operator discomfort. Not only that, but the multi-position motorized zoom lens allows changes to the magnification to be part of measurement program, eliminating the need for time-consuming manual changes.
Range of applications
Thanks to its rich suite of functionality and incredible value, the LVC-Series is the ideal measurement solution for a wide range of applications including precision engineering, casting, plastic molding, electronics and medical devices manufacture.
Up to 400 mm x 300 mm
measurement range
Touch probe
compatible
Full CNC
control in 3 axes

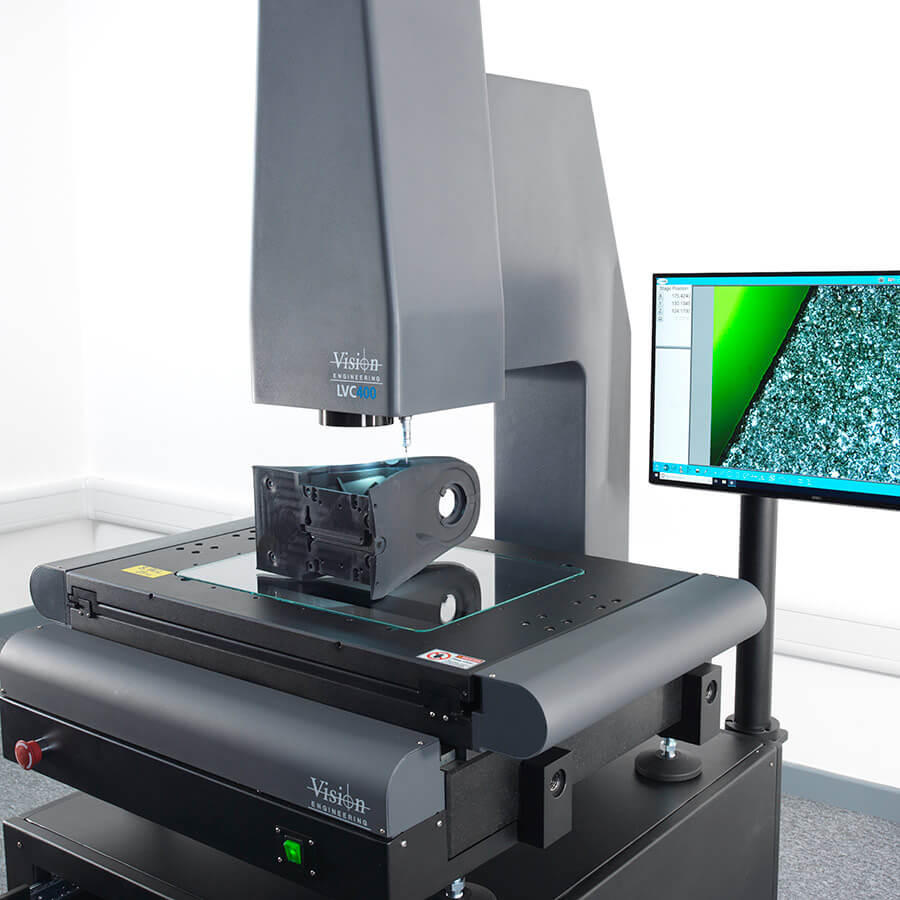

Contact measurement for complex parts
Optional touch probes make is easy to measure complex features and 3D forms, and a convenient probe module changing rack is provided for storing and automatically changing multiple probe modules.

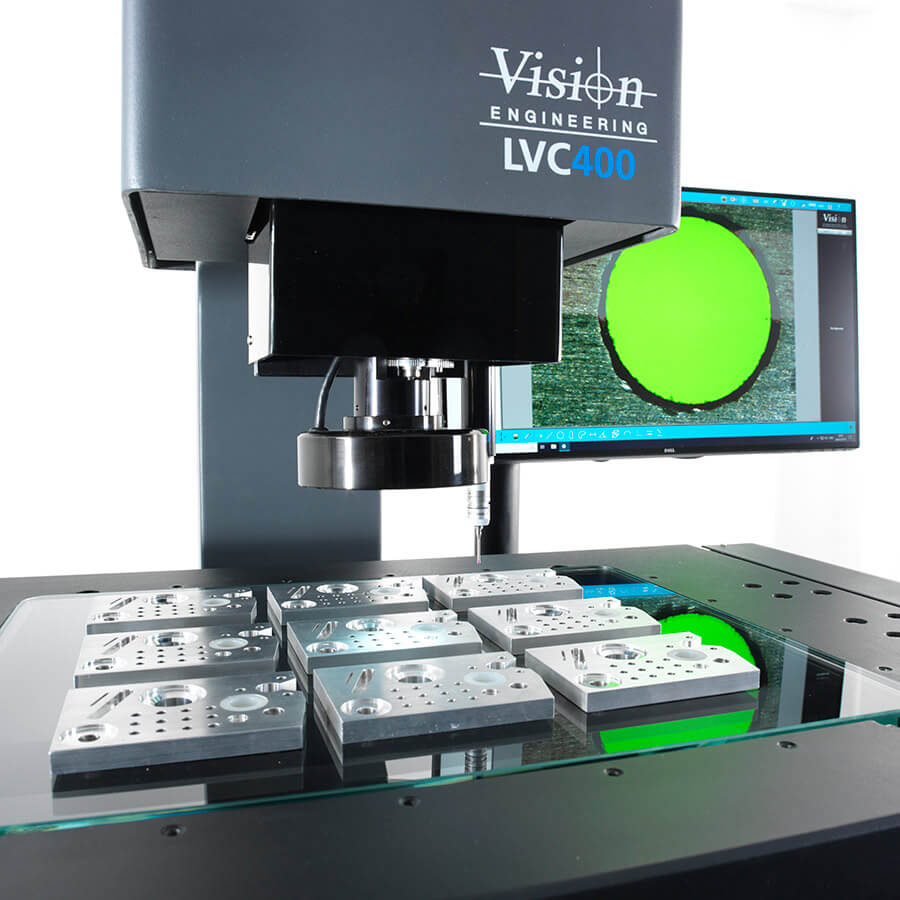

Large and multiple small components.
A large 16″ x 12″ ( 400mm x 300mm) stage makes the LVC400 ideal for measuring large components, it can also be used to speed up the measurement of multiple smaller components by using the palletizing feature. Simply load the small components onto the stage and save time by measuring the whole lot at once.
Intuitive metrology software
The LVC range comes with our highly intuitive and user-friendly M-Series software for advanced functionality and comprehensive reporting capabilities. Highlights include feature measurements and constructions with geometric tolerancing, programmable illumination, DXF import/export and digital overlays, advanced edge detection, simple SPC and direct data transfer to Excel. All this, plus stitching and pallet programs, a multi-feature finder tool, a thread measurement option and formula results with a calculation feature makes the LVC ideal for a wide range of applications.
