Industrial rectangular lens LED bench magnifier

Optimised for industrial applications, the WAVE LED professional bench magnifier provides maximum clarity, flexibility and stability for any manufacturing, quality assurance, manipulation, or general examination task.

WAVE LED, UV and ESD bench magnifiers incorporate the same design excellence adopted throughout Vision Engineering’s award-winning stereo microscopes, providing maximum clarity, flexibility and stability.

02-Swift-PRO-measuring-microscope-user-AB V19 495

Shadow-free magnification

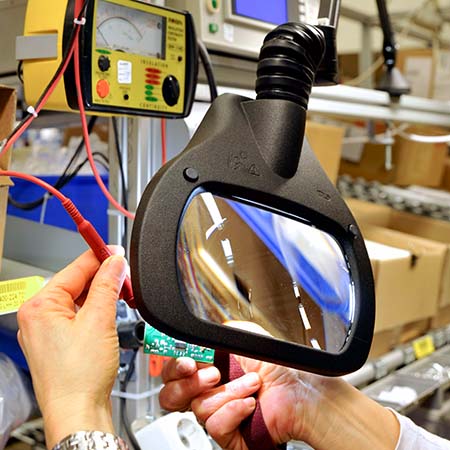

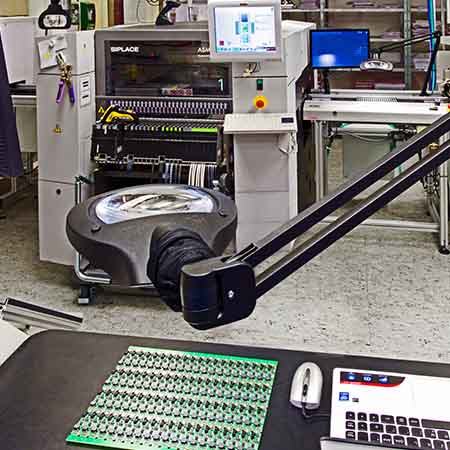

WAVE LED offers shadow-free magnification and 3D viewing with the independently controlled left and right illumination. The 3D-feature is especially useful when working with circuit boards and similar delicate objects in inspection and rework applications.

Flexible working positions

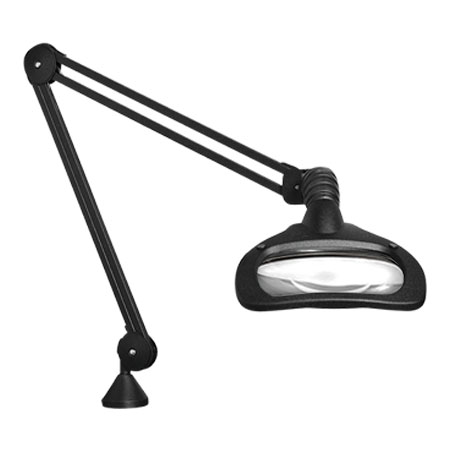

Our magnifiers are specially designed to maximize horizontal and vertical movement. They provide significant horizontal reach and will always stay in the right position without drifting.

The arms are balanced by spring systems which ensure smooth and easy positioning – no knobs to tighten, nothing to adjust.

The flexibility of the self-balancing arm and friction-free joint between the head and arm makes exact positioning easy. The fully-enclosed neck design is ideal for mechanical, electronics, circuit boards, dental and jewellery and other precision applications.

07-Swift_PRO_measuring-microscope-range_300dpi

1.88 – 4.75x

Magnification

ESD and UV

Variants

Full HD

Camera Option

Importance of light quality

Good lighting reduces the risk of health problems, increases safety and enhances productivity.

Hence great importance is placed on the light quality of our illuminated magnifiers having powerful luminators with excellent light output. The quality and exact positioning of the light sources in relation to the lens allows for virtually shadow-free magnification and excellent colour rendering capabilities.

Glass lens for superb clarity and comfort

The quality of the WAVE LED starts with its high performance optical glass lens which provides superb clarity. The crown glass lens has a lower refractive index than plastic lens bench magnifiers. This reduces the loss of light in transmission through the lens and there is less distortion of the image.

Less distortion makes for more comfortable viewing over longer periods of time.

Technical

Circus LED Wave LED KFM LED LFM LED G2
3.5D (1.88x) 3.5D (1.88x) 3.0D (1.75x) 3.0D (1.75x)
5.0D (2.25x) 5.0D (2.25x) 5.0D (2.25x) 5.0D (2.25x)
Lens Size
Circus LED 165mm dia.
Wave LED 171mm x 114mm
KFM LED 127mm dia.
LFM LED G2 127mm dia.
Additional STAYS lens options
4.0D (1x), 6.0D (1.5x), 10.0D (2.5x)
Circus LED Wave LED KFM LED LFM LED G2
x x
Circus LED Wave LED KFM LED LFM LED G2
Type Circular L and R 2x semi-circular Circular
Dimming Seamless 3-step Seamless 3-step
3D lighting x x x
UV version x x x
Circus LED Wave LED KFM LED LFM LED G2
Edge Mount Bracket
Surface Mount
Table Bushing
Floor Stand
Circus LED Wave LED KFM LED LFM LED G2
x x
BenchKam Options
HD camera 720p versio
Full HD camera 1080p version
