EVO Cam Series
Capable. Powerful. Adaptable. EVO CAM ll digital microscope provides high-resolution imaging, allowing for clear and detailed visualization of specimens.
- Inspect subject details clearly and accurately
- On-board digital tools to aid productivity
- 10 pre-sets to reduce set-up time and operation
Capable. Powerful. Adaptable.
EVO Cam is a powerful, versatile, yet easy-to-use, high definition digital microscope. Flexible configuration options deliver excellent image quality and optical magnification up to 725x. Digital zoom takes you further. What’s more, a range of precision objectives and wide-field lenses let you choose a configuration that’s an exact match for your unique and individual needs. It’s everything you would expect from a Vision Engineering microscope.
Consistency and versatility
Consistent quality inspections across multiple units, multiple users and multiple sites is easily achievable through a range of tools and by sharing of settings between units. EVO Cam adapts to new roles with push -button simplicity, delivering capabilities and predictable results whatever the task.
Exceptional images
A 30:1 optical zoom range, delivering optical magnification up to 725x, lets you see the detail you need to really understand the subject. Use the digital zoom to increase this to an impressive 9000x maximum magnification. Full HD video brings out every detail, and manual and automatic focusing gives you ultra-sharp images every time. Even large subjects which would defeat lesser microscopes are brought into complete top-to-bottom focus thanks to EVO Cam II’s focus stacking capability.
0.8 – 750x
Magnification
Large
Field of View
PC
control option
Maximum convenience
EVO Cam is built for convenience. A large field of view and long working distance, for example, let you examine a wide range of subjects. Ten pre-sets make it easy to share between users across different applications, and a supervisor-setting lock lets you stay in control.
Precise, referencing measurements
EVO Cam measures complex parts efficiently and quickly using overlays or point-to-point measurement. The overview function enables quick and convenient sample orientation, while overlays and the image comparison feature enable easy comparison with reference marks or sample images. Calibrations, which can be saved in pre-sets can be tracked through the zoom range, speeding measurement of different size details and removing the need to recalibrate.
Easy image capture
Capture high resolution images at the touch of a button either direct to USB memory stick, via wireless or direct to a PC. Simple capture and share options aid collaboration, reporting and training.
Intuitive simplicity
Out of the box, EVO Cam can be set-up in minutes. Then simply turn the camera on and begin viewing and capturing full HD images. EVO Cam’s intuitive controls make it easy to use from the start, and the multi-language on-screen menu let even minimally trained operators can get to work straightaway.
A customized solution
Personalize EVO Cam to your exact requirement by selecting from a comprehensive range of options. A 360˚ rotating viewer for looking around the subject, focus stacking for bringing tall subjects into uniform focus, a UV ring light, sub-stage illumination and a range of filters all help you inspect a wider range of subjects. Add a floating stage for even greater precision and control, and choose from a wide range of stands to make EVO Cam perfect for your application.
Technical
Zoom Ratio: 30x
| Objective Lenses | Magnification range (24” monitor) | Working Distance (mm) | Max Field of View (mm) |
| 0.45x | 2.3x – 68x | 6.30″ (160mm) | 9.5″ x 5.3″ (241mm x 134mm) |
| 0.62x | 3.1x – 93.7x | 4.17″ (106mm) | 6.8″ x 3.8″ (173mm x 96mm) |
| 1.0x | 5.0x – 151.2x | 3.35″ (85mm) | 3.5″ x 2.2″ (88mm x 57mm) |
| 1.5x | 7.6x – 226.8x | 1.69″ (43mm) | 1.77″ x1.41″ (45mm x 36mm) |
| 2.0x | 10x – 302.4x | 1.14″ (29mm) | 1.46″ x 1.06″ (37mm x 27mm) |
| Wide-field lenses | |||
| 2 Dioptre | 0.8x – 24x | 19.69″ (500mm) | 23.62″ x 13.78″ (600mm x 350mm) |
| 3 Dioptre | 1.15x – 32.6x | 12.99″ (330mm) | 16.53″ x 9.84″ (420 x 250mm) |
| 4 Dioptre | 1.71x – 51.41x | 9.65″ (245mm) | 11.54″ x 6.73″ (293mm x 171mm) |
| 5 Dioptre | 2.12x – 65.5x | 7.76″ (197mm) | 9.13″ x 5.31″ (232mm x 135mm) |
| Micro objectives | |||
| 5x | 250x – 362x | 0.83″ (21mm) | 0.08″ x 0.05″ (2.1mm x 1.3mm) |
| 10x | 500x – 725x | 0.87″ (22mm) | 0.04″ x 0.03″ (1.0mm x 0.65mm) |
With 360° Optical Viewer*
| Setting | 360° Rotating View | Direct View |
| Magnification range (24” monitor) | 19x – 105x | 28x – 151x |
| Working Distance | 1.39″ (35.5mm) | 2.22″ (56.5mm) |
| Max Field of View | 1.02″ x 0.87″ (26mm x 22mm) | 0.79″ x 0.43″ (20mm x 11mm) |
| Viewing Angle | 34° | N/A |
| Zoom ratio | 5.3x | 5.3x |
* Only compatible with EVO Cam II model
| Illumination | |
| Built in | 8pt LED ring light for shadow-free illumination. Color temperature 5500K. |
| Optional | |
| White and UV quadrant ring light | For inspection of UV fluorescing subjects e.g. conformal coatings |
| Sub-stage illumination | For translucent subjects, perforated subjects etc. |
| Flexible illuminators | Twin flexible bar-lights to extend control of the effects reflections and shadows. |
| EPI illuminator | Through-the-lens episcopic illumination to simplify inspection of bores, pipes, tubes, slots, and holes. |
| Camera | |
| Camera zoom | 30x optical; 12x digital |
| Camera resolution | Full-HD 1080p, 1920 x 1080, 1/2.8″ CMOS |
| Frame rate | 50fps & 60fps (switchable) |
| Focus | Auto focus and manual focus |
| Output | HDMI & USB 3.0 |
| Saved file type | .PNG, JPEG+, JPEG, JPEG- |
| Feature | EVO Cam II | EVO Cam ICON |
| Image capture & playback | ✓ | ✓ |
| Auto focus and manual focus | ✓ | ✓ |
| Remote control option | ✓ | ✓ |
| Single-point calibration/measurement | ✓ | ✓ |
| Multi-point calibration/measurement | ✓ | x |
| Focus stacking | ✓ | x |
| Overlays | ✓ | x |
| Set zoom limits | ✓ | x |
| Set meta data | ✓ | x |
| Supervisor mode | ✓ | x |
| Image comparison | ✓ | x |
| Stand Options | |
| Ergo stand |  Small footprint, high stability for high magnification use. Optional sub-stage illumination. Floating stage can be fitted. Small monitor mount can be fitted. |
| Multi-axis stand |  Precise and robust. Ideal for industrial application where maximum work space is required. Counter-balanced for quick, effortless, adjustability. Available with direct mounting to work surface or platform base (sub-stage base option is also available). Small monitor mount can be fitted. |
| Double boom stand |  For stability and extended reach. Available with direct mounting to work surface or platform base. |
| Single-arm boom stand |  High stability, large working distance range, heavy duty platform base. |
| Articulated arm stand |  Extended reach and ultimate flexibility to allow precise positioning. |
| Crescent stand |  Offers continuous height adjust with precision control. |
| Verso stand |  Convenient swing arm for flexibility and to keep work area clear when microscope is not in use. |
On-board camera, lighting and zoom controls are standard. Also includes tools for: using overlays, grids, cursors, calibration & dimensioning. Focus Stacking is optionally available.
When connected to a PC, there are several options:
| Software Options | |
| DimensionOne | Image capture, annotation, on-screen measurement. |
| DimensionTwo | Image capture, annotation, on-screen measurement, camera control. |
| ViPlus | Image capture, analysis, enhancement, annotation, on-screen measurement, camera control, reporting. |
| VifoxEVO | Image capture, annotation, on-screen measurement, camera control, reporting. |
- Standard power 100V-240V, 50/60Hz, available in all worldwide plug configurations.
| Other Accessories | |
| Remote control console | For hand-held camera control; improves user confort and includes quick access to pre-sets. |
| Floating stage | For smooth and precise control. For use with Ergo stand and Bench stand only. |
| Filters | A range of filters are available to enhance details and contrast: including colour temperature and polarisers. |
| Ergo stand monitor mount | For mounting a 10” or 12” monitor directly to the stand. For in-line viewing, small footprint and easy adjustment. |
| Multi-axis stand monitor mount | For mounting a 10” or 12” monitor directly to the stand. For in-line viewing, small footprint, easily adjustable, and can move with the stand height adjustment. |
EVO Cam Series
Capable. Powerful. Adaptable. EVO CAM ll digital microscope provides high-resolution imaging, allowing for clear and detailed visualization of specimens.
EVO Cam ICON Long Working Distance
- Wide field lenses offer maximum flexibility
- Large zoom range, up to 500mm working distance
- Ideal for large area subjects
EVO Cam II With Microscope Objectives
- Straightforward adaptor enables microscope lenses to be fitted
- For optical magnification up to 750x
- Compatible with existing lighting
EVO Cam II
EVOTIS
- Advanced inspection workstation
- For large area subjects such as PCBs and multi-layer components
- Enables quick and efficient inspection of fine detail
EVO Cam II

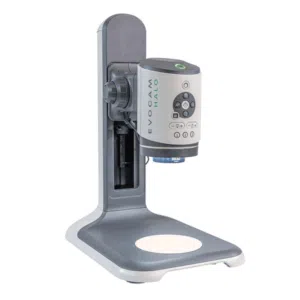

Ergo Stand
- High stability, small footprint stand
- Ideal for high magnification use
- Substage illumination option, course and fine focus
EVO Cam II
Multi-axis Stand
- Precise and robust, ideal for industrial applications
- Integrated gas strut for quick, effortless operation
- Platform base or direct mounting to bench
EVO Cam II
With 360° Viewer
- 360° rotating view
- View all around the subject quickly and easily up to 105x
- Rapid switching between rotating and direct view
