DimensionTwo
Advanced measurement features at an affordable price
Advanced measurement features at an affordable price
Designed for optimum performance
DimensionTwo is a versatile inspection and measurement software for users who want to minimise unnecessary errors of measurement but do not need the full certified accuracy of a metrology system. It is ideal for those who need to capture, annotate and share their findings with colleagues, suppliers and customers.
Advanced measurement features at an affordable price

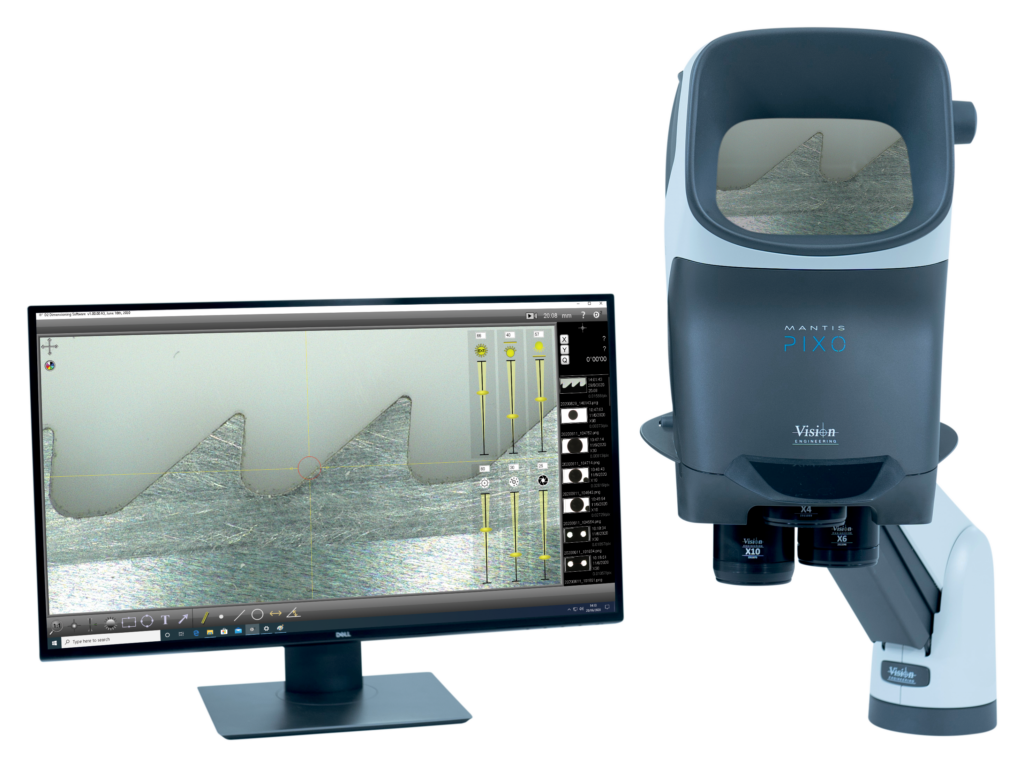

Powerful and capable, yet surprisingly affordable, DimensionTwo measurement and annotation software lets you take quick and easy measurements of simple features of a subject. Designed for optimum performance when measuring with EVO Cam HALO, EVO Cam II, EVO Cam ICON, Lynx EVO, Mantis EliteCam and Mantis PIXO.

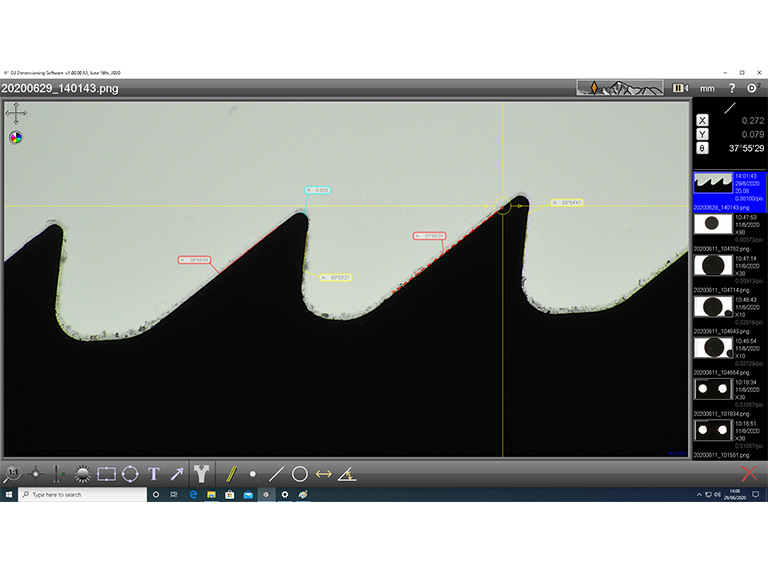

Accurate edge detection

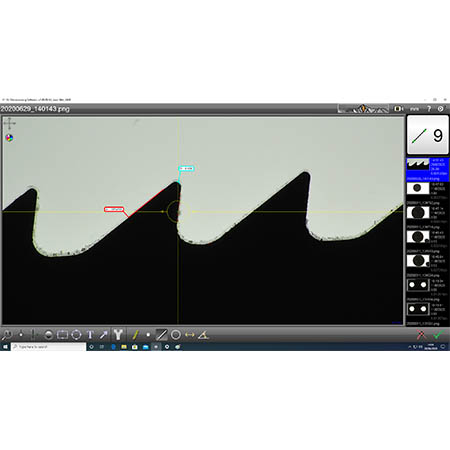

DimensionTwo’s video edge-detection feature makes it easy to select the optimal point on an edge for measurement far more accurately than is possible by hand alone. As well as measuring between different points, it lets you save and share images with these details clearly labelled.
Impressive ease of use
A simple and intuitive user interface provides full control of the EVO Cam product and allows you to perform image capture, measurement and annotation tasks with ease.
2 – 20x
Magnification
Easy
Viewing
HD
Image Capture
Save time and effort
Save your camera and illumination settings for instant recall. Paired with EVO Cam series products you can perform low and high magnification measurements at the touch of a button using either the pre-installed settings or your customised settings.
Dimensioning and simple measurement:
Onscreen dimensioning is used on captured images for measuring circles, lines, points, angles and distances. Additionally, there is a range of powerful dimensioning tools available including creating intersection of lines, pitch circle diameters and more.
Ideal for EVO Cam HALO and EVO Cam Series digital microscopes
DimensionTwo unlocks the full feature set of EVO Cam Series microscopes to bring you full control of the camera with save and recall of settings functions, a very wide field of view measurement, and linking of positions at different zoom levels.
Fully compatible with:
- EVO Cam HALO, EVO Cam II and EVO Cam ICON

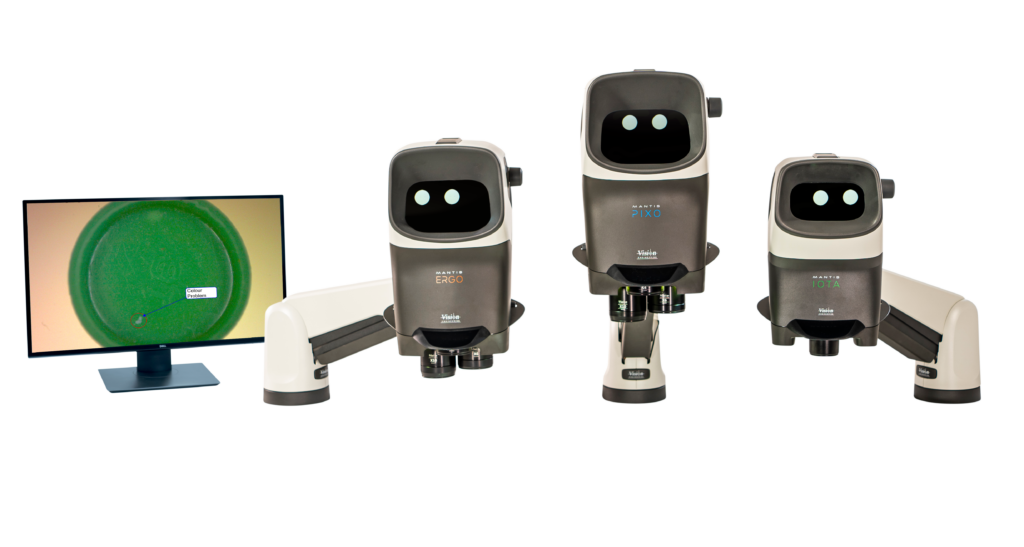

- Mantis PIXO, Mantis EliteCam HD
- Lynx EVO Smart CAM: 5, 5A, 50
- DRV-Z1 (requires adaptor).
Key Features
- Video edge detection
- Field of view (FOV) calibration
- Edge bias correction
- Parcentricity correction: linking of positions at different zooms
- Definition and measurement of features
- Easy, fast annotation for reporting
- Control of EVO Cam II & HALO
- Pre-set magnification settings with factory set pixel and FOV calibration
