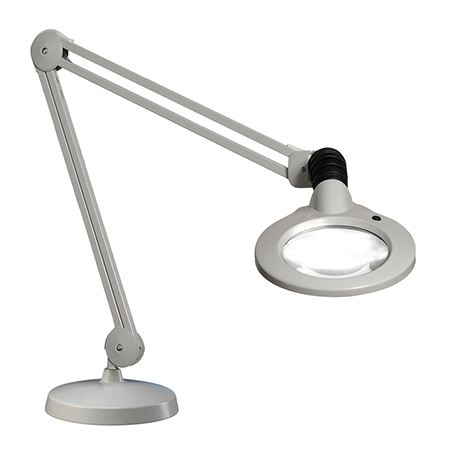

Multi-purpose Industrial LED Bench Magnifier

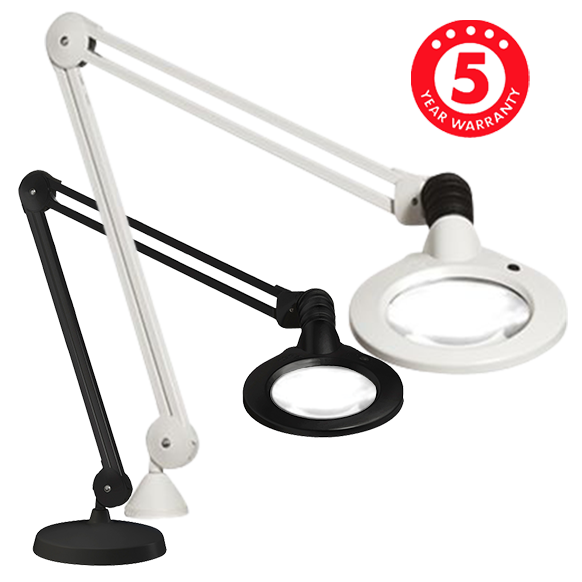

KFM LED and KFM LED ESD models have a robust all-metal construction with sleek design, a flexible arm and excellent light output. It is suitable for all industrial applications.
The flexibility of the joint between lamp’s head and the arm makes exact positioning very easy. The quality of the LEDs allows for virtually shadow-free magnification and excellent color rendering.

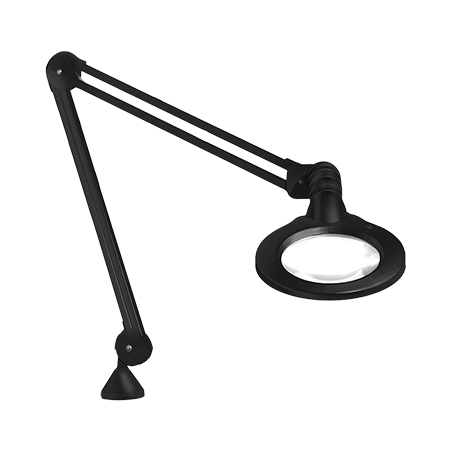

KFM LED ESD is designed to dissipate static charges as they occur in a controlled manner.
KFM LED round lens bench magnifier is ideal for a variety of precision tasks, including: electronics rework, deburring, sample preparation, dissection, assembly and manipulation.
A flexible, self-balancing shade and fully-enclosed, hands-free neck design is ideal for environments where foreign object debris (FOD) is a concern.
The quality and positioning of the LEDs across two semi-circular modules allow for virtually shadow-free illumination and excellent color rendering.
Flexible working positions
Our magnifiers are specially designed to maximize horizontal and vertical movement. They provide significant horizontal reach, and will always stay in the right position without drifting.
The arms are balanced by spring systems which ensure smooth and easy positioning – no knobs to tighten, nothing to adjust.
The flexibility of the self-balancing arm and friction-free joint between the lamp head and arm makes exact positioning easy. The fully-enclosed neck design is ideal for mechanical, electronics, circuit boards, dental and jewelry and other precision applications.
Importance of light quality
Good lighting reduces the risk of health problems, increases safety, and enhances productivity.
Hence great importance is place on the light quality of our illuminated magnifiers, having powerful luminators with excellent light output. The quality and exact positioning of the light sources in relation to the lens allows for virtually shadow-free magnification and excellent color rendering capabilities.
Glass lens for superb clarity and comfort
The quality of KFM LED starts with the high performance optical glass lens means superb clarity. The crown glass lens has a lower refractive index than plastic lens bench magnifiers, which reduces the loss of light in transmission through the lens and therefore less distortion of the image.
Less distortion makes for more comfortable viewing over longer periods of time.
|Self-Traction Accessory Yield System for use with KFM LED, WAVE LED, LFM LED, IFM, and Circus LED Magnifiers. 2” lens diameter (2.5” diameter including the silicon gasket frame).|
|50404||4 diopter STAYS Lens|
|50406||6 diopter STAYS Lens|
|50410||10 diopter STAYS Lens|

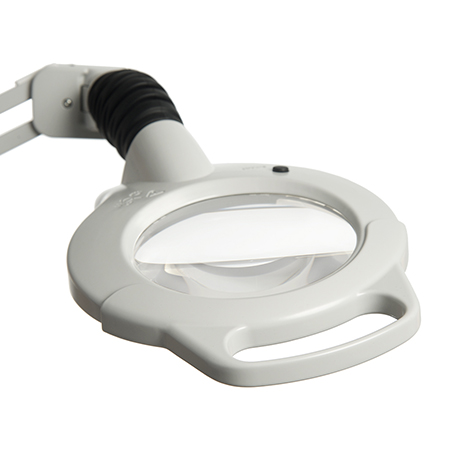

KFM LED Handles
|For use with KFM LED bench magnifiers.|
|SPD026588||KFM LED Handle, black|
|SPD026587||KFM LED Handle,light grey|
|SPD026586||KFM LED Handle, white|
Floor Stand Trolley
|863mm (34″) Painted steel pole and cast iron base includes both casters and glides|
|50036BK||Rolling Floor Stand, black|
|50036LG||Rolling Floor Stand, light grey|
|50036WT||Rolling Floor Stand, white|
|SPA025674||Extra weight for Rolling Floor Stand, white (required for Circus magnifiers)|
A-Edge Mount Bracket
|For mounting products to horizontal surfaces. Maximum 57mm (2.25”) opening.|
|60001BK||A Edge Mount Bracket, black|
|60001LG||A Edge Mount Bracket, light gray|
C-Surface Mount Bracket
|For permanent mounting to tables or other horizontal surfaces.|
|50005BK||C Surface Mount Bracket, black|
|50005LG||C Surface Mount Bracket, light grey|
|For use with 762mm (30”) arm magnifiers (USA only).|
|50010BK||FE Base, black|
|50010LG||FE Base, light gray|
|50010WT||FE Base, white|
AH Mount Bracket
To discuss your particular requirements in further detail, please contact your local Vision Engineering representative.
|Lens||3 diopter (1.75X) or 5 diopter (2.25X) round white crown glass lens|
|Secondary lenses||4, 6 or 10 diopters STAYS secondary suction lenses can be attached to the crown glass lens|
|Illumination||2 x semi-circular 9W LED modules
Brightness 3000 lux at 330mm (13″) focal length
Correlated colour temperature (CCT) is 4000°K
Dimmable 1-100% control
|Arm technology||Self-balancing arm with friction-free joint between the lamp head and arm. Heavy duty internal spring, 1143mm (45″) 30″ for USA only parallel three-pivot K-arm|
|Mounting||Edge clamp or other table clamps, integrated table mounts and trolley available (For USA only – weighted base available for 30″ arm)|
|Body material||KFM LED steel arm, shade in aluminium, light grey
KFM LED ESD steel arm, shade in aluminium or black
|Timer||Auto shut-off function after 4 or 9 hours|
|Power consumption||11 Watts|
|Power supply||Operating voltage 230V – 240V 50/60 Hz|
|Accessories||Dust cover included. Refer to accessories tab for other options|
This table provides a complete overview of the total magnification options available by adding secondary lenses to the illuminated magnifiers.
|Wave® LED, Circus LED (incl. ESD-Safe and UV models)|
|KFM™ LED, LFM LED, KFM, IFM (incl. ESD-Safe models)|
Can I have a higher diopter lens?
|There are two options available 3 and 5 diopter models, please specify which diopter lens you wish when ordering. The lenses are fixed and not interchangeable.
To increase magnification further there are a number of secondary lenses available (refer to magnification table in Technical section).
Generally 3 and 3.5 diopters provides the best balance between magnification and working distance for more industrial uses.
What is the benefit of a glass lens over a plastic lens?
|There are number of reasons that mineral glass lenses provide exceptional clarity and robustness over that of plastic lenses.
High quality glass mineral lens offers less distortion than plastic as it has a better surface form and refraction index, so allowing more light through providing better optical clarity of the image.
Plastic can be easily scratched and is less durable than glass and can be accidentally melted through contact with a hot source such as solder or splatter as well as being less resistant to chemical and solvents.
Glass lenses bench magnifiers are usually higher quality than plastic lens versions and are more suited to industrial, scientific and manufacturing applications.
Can I easily adjust the illumination?
|Yes. There is 10% – 100% dimmable illumination control.|
What is a diopter?
|A diopter (US), or dioptre (UK) is a unit of measurement of the optical power of a lens or curved mirror.
As the diopter increases, the lens becomes thicker, making the object look bigger. The higher the diopter, the more magnification the lens provides. A flat window has an optical power of zero diopters, and does not converge or diverge light.
It is also important to note that the power of the lens is inversely related to the focal distance (working distance). Meaning, as the power of the lens increases, so the focal distance decreases, making it more difficult to perform tasks with high magnification lenses.
See Mantis Compact low magnification stereo microscope if higher magnification is required.
Magnification is calculated by simply dividing the diopter by 4, then adding 1.
e.g. 3 diopter lens = 3/4 + 1 = 1.75x
Therefore, objects viewed through a 3 diopter lens will appear 175% bigger than normal.
