Explore the benefits of the EVO Cam HALO

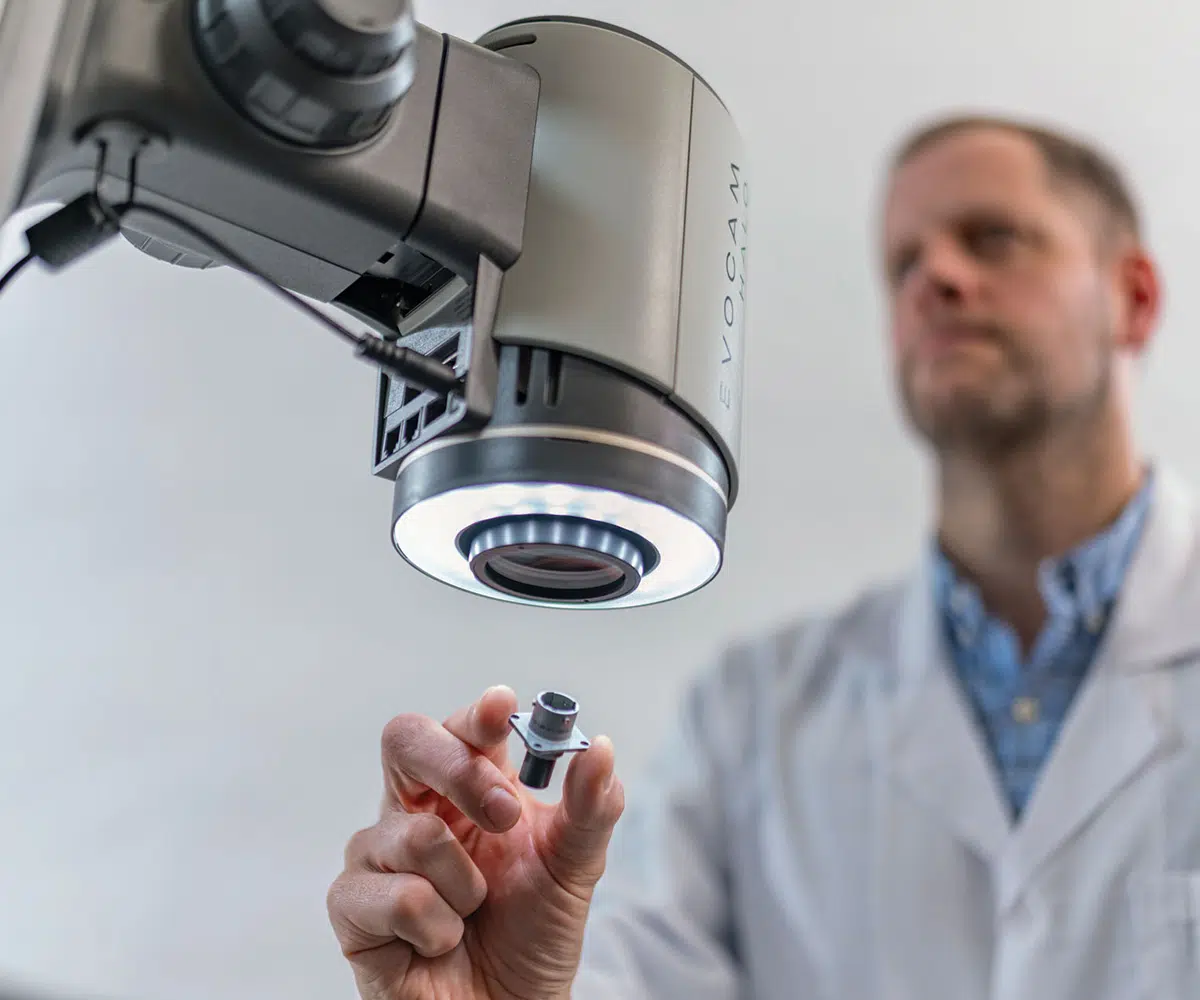

Intelligent lighting
Customizable intelligent lighting options, including quadrant-controlled white, UV, and wide-area panel lights, fit directly to the camera and are easily swapped in seconds and automatically saves settings.

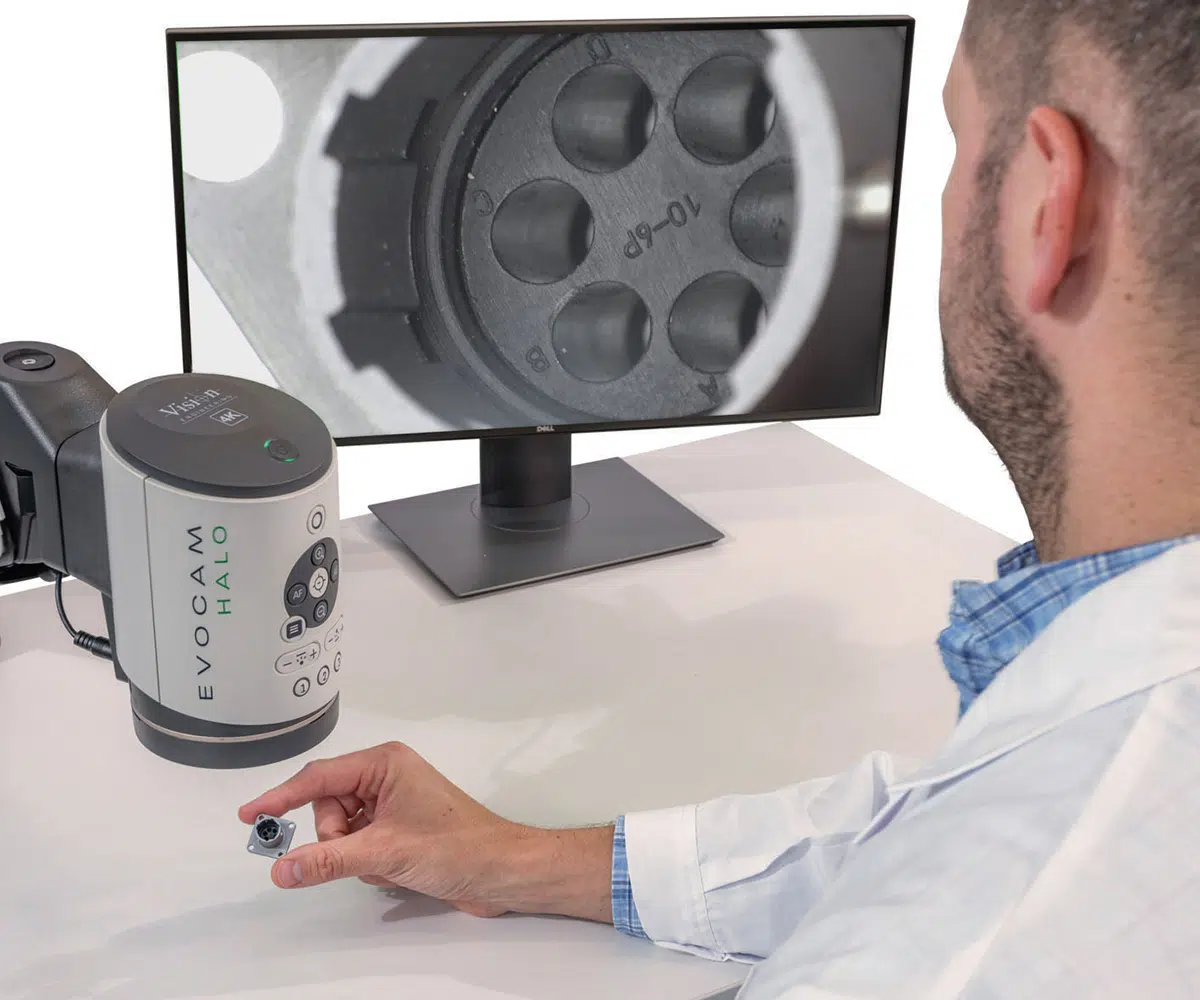

Superb image quality
The 4K image sensor captures four times more detail than full HD cameras and the high dynamic range preserves critical details in both dark and bright areas of the image. Ideal for inspecting reflective surfaces.
Intuitive software
The Auto Lens ID feature, paired with the intelligent lens mount, automatically adjusts magnification settings, streamlining the workflow and guaranteeing accurate inspections every time.
Technical
| Objective Lenses | Magnification range (27” monitor) | Working Distance | Horizontal field of view at low magnification | Field of view at max. magnification | |
| Optical zoom only | Digital zoom only | ||||
| x0.45 | 2.16 – 43.2x | 172 mm | 295 mm | 16.5 mm | 8.3 mm |
| x0.62 | 2.97 – 59.4x | 120 mm | 230 mm | 12.0 mm | 6.0 mm |
| x1.0 | 4.8 – 96.0x | 84 mm | 95 mm | 7.5 mm | 3.8 mm |
| x1.5 | 7.2 – 144x | 43 mm | 47 mm | 5.0 mm | 2.5 mm |
| x2.0 | 9.6 – 192x | 30 mm | 29 mm | 3.5 mm | 1.8 mm |
| Wide-field lenses | |||||
| 2D | 0.84 – 16.8x | 500 mm | 455 mm | 36.5 mm | 18.3 mm |
| 3D | 1.26 – 25.2x | 333 mm | 417 mm | 24 mm | 12.0 mm |
| 4D | 1.68 – 33.6x | 250 mm | 315 mm | 18 mm) | 9.0 mm |
| 5D | 2.11 – 42.2x | 200 mm | 235 mm | 14.5 mm | 7.3 mm |
Micro 5x and 10x available upon request.
| Illumination | |
| 3 Intelligent clip-on/off ring lights | 8-point ring light. Color temperature 5,500K (adjustable with filter options) |
| 8-point quadrant controlled white & UV ring-light ideal for inspecting coated parts | |
| Quadrant controlled large area panel light for highly reflective parts | |
| Sub-stage illumination | Large area sub stage lighting for translucent of perforated parts |
| EPI illuminator | Through-the-lens episcopic illumination to simplify inspection of bores, pipes, tubes, slots, and holes |
| Contrast enhancing base | Control illumination angle from below to highlight details and features on transparent and translucent parts |
| Camera | |
| Optical zoom | 20:1 |
| Digital zoom | x2 and x12 |
| Camera resolution | 3840 x 2160 pixels |
| Frame rate | 30fps |
| Focus | Auto, AutoSpot and Manual focus |
| Stand Options | |
| Ergo stand (with or without substage) |  Small footprint, high stability for high magnification use. Optional sub-stage illumination. Floating stage can be fitted. Small monitor mount can be fitted. |
| Multi-axis stand (bench mounted or base with or without substage) |  Precise and robust. Ideal for industrial application where maximum work space is required. Counter-balanced for quick, effortless, adjustability. Available with direct mounting to work surface or platform base (sub-stage base option is also available). |
| Boom stand (Single arm and Double arm) |  For stability and extended reach. Available with direct mounting to work surface or platform base. |
| VERSO stand (with or without extension arm) |  Small footprint, ideal for workstations with limited space as the stand allows for moving the EVO Cam ICON out of the way when not in use. |
| Articulated Arm |  Extended reach and ultimate flexibility to allow precise positioning. |
| Track stand |   Economical stand delivering large field of view. Available with Crescent or Square base |
| Software Options | |
| ViPlus | Image capture, analysis, enhancement, annotation, on-screen measurement, camera control, reporting. |
- Standard power 100V-240V, 50/60Hz, available in all worldwide plug configurations.
| Other Accessories | |
| 4K 360° Viewer | Oblique and direct rotating viewer |
| Pilot Stage | (Ergo Stand): For smooth and precise control. 100mm x 100mm travel stage with Auto lock to prevent unwanted movement |
| Contrast Enhancing Base | To optimize lighting for a variety of transparent and translucent samples, enhancing the observed contrast |
| Tilting Base | For changing the position and angle of the subject without touching it |
| Multi-axis stand monitor mount | For mounting a 10” or 12” monitor directly to the stand. For in-line viewing, small footprint, easily adjustable, and can move with the stand height adjustment |
| 4K Image / Video Capture | Stand-alone non-pc capture box or grabber card for PC |
| Remote | Keypad to control EVO Cam HALO |
| Filters | Diffuser, Polarizing and IR filters |
| Miscellaneous | Monitor Mounts, Riser block for Ergo, Base and Extn. poles for Multi Axis |
