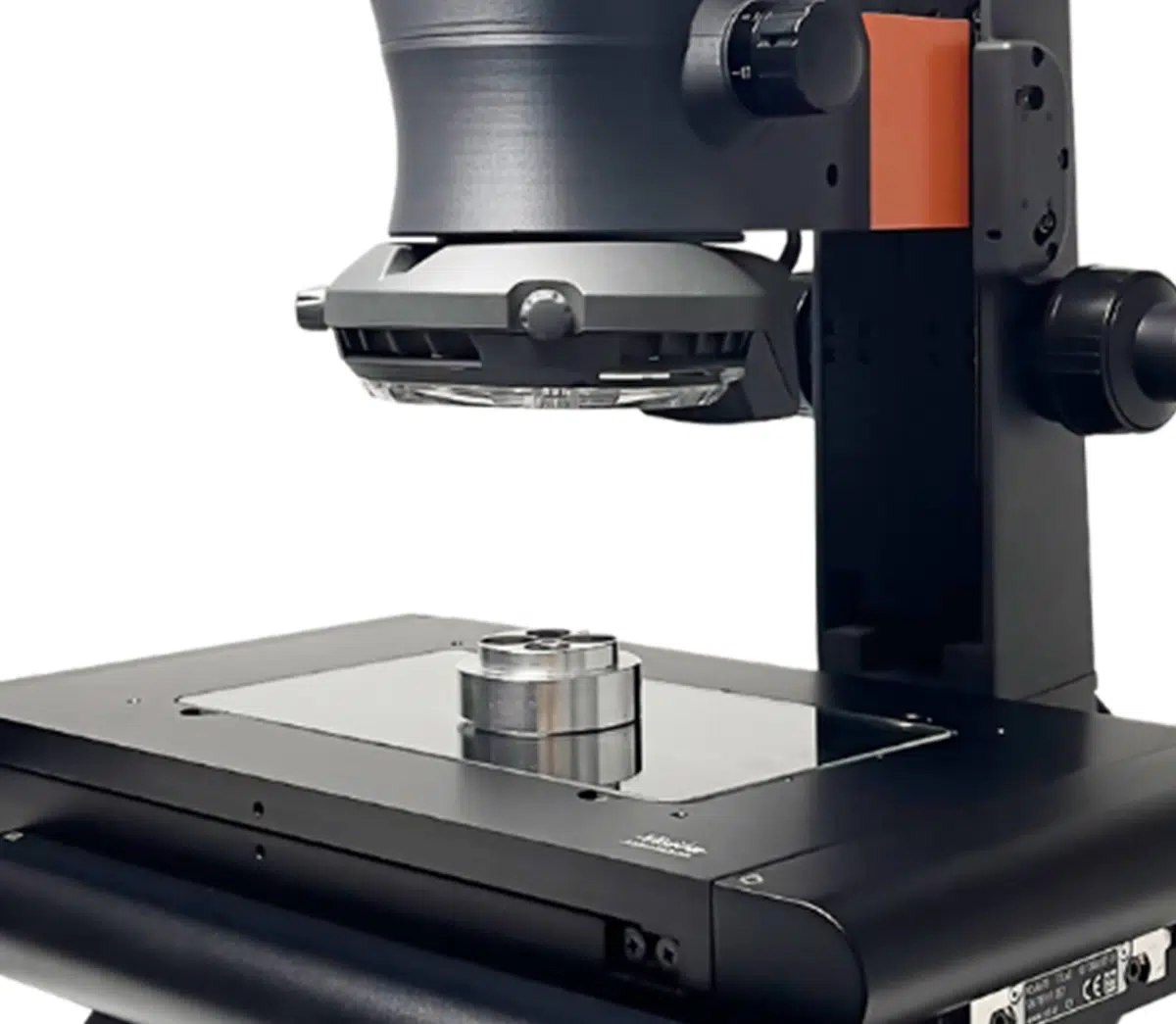

Swift PRO EDGE

Simple – Accurate – Compact

  • Optical zoom for optimal edge detection
  • Compact size for easy workshop integration
  • Easy to use software for all skill levels
  • Affordable system starting at $18,000

Explore the benefits of the Swift PRO EDGE

Easy to use

Measuring complete features with a quick and easy click. The system’s accurate edge detection ensures precise measurements every time regardless of operator’s skill level. Results are easily exported as a CSV file and other popular data formats.

Small to medium parts

The Swift PRO EDGE is used in various industrial applications and is the perfect upgrade from an optical optical comparator or an existing video measuring system. The compact design makes it suitable for the workbench.

Zoom in on features

The 6.5x zoom enables quick, precise measurements of various part sizes and features without changing the lens for different measurement tasks. Magnification ranges from 80x to 533x on a 22″ monitor.

Technical

Measuring capacity (X x Y x Z*)
200 x 100 x 100 (mm)
28 x 4 x 3.9 (inch)

Optics
Easy-fit macro objectives
6.5x indexed optical zoom

Camera (X x Y x Z*)
5MP color CMOS

Maximum load
10 kg (22.04 lbs)

Dimensions (H x W x D)
680 mm x 515 mm x 480 mm (26.77” x 20.27” x 18.90”)

Measurement uncertainty* (X- Y)
5 + (6.5L/1000) µm  **

* Measurement uncertainty is determined in accordance with ISO-10360 Part 7

** L = length in mm, using controlled conditions with maximum magnification at the standard measuring plane

Measurement uncertainty* (Z)
from 10 µm **

* Measurement uncertainty is determined in accordance with ISO-10360 Part 7

** Using controlled conditions with maximum magnification

Magnification Range
80x -533x (on 22″ monitor)

Surface (Reflected) illumination
Bright white LED ring light with 4 sectors and diffuser

Substage (Transmitted) illumination
LED back light, with green filter and iris adjustment

Light Control
Fully programmable

Measurement Software
M-Series Software and PC
