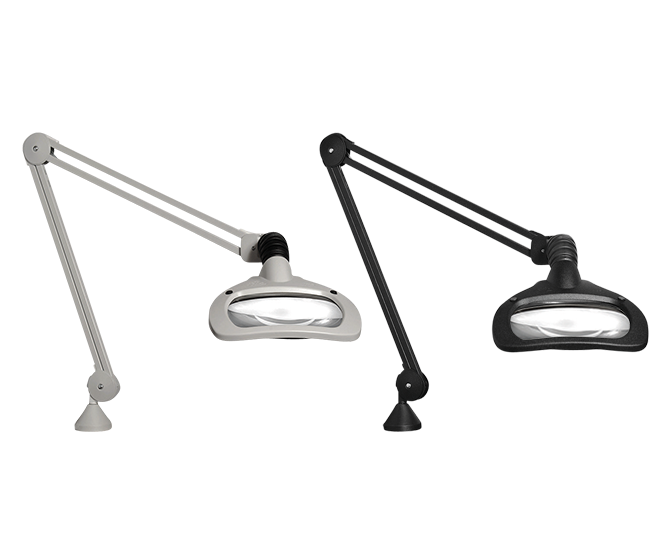

Industrial rectangular lens LED bench magnifier
Optimized for industrial applications, the WAVE LED professional bench magnifier provides maximum clarity, flexibility and stability for any manufacturing, quality assurance, manipulation, or general examination task.
WAVE LED, UV and ESD bench magnifiers incorporate the same design excellence adopted throughout Vision Engineering’s award-winning stereo microscopes, providing maximum clarity, flexibility and stability.
WAVE LED bench magnifier is ideal for a variety of precision tasks, including: electronics rework, deburring, sample preparation, dissection, assembly and manipulation.

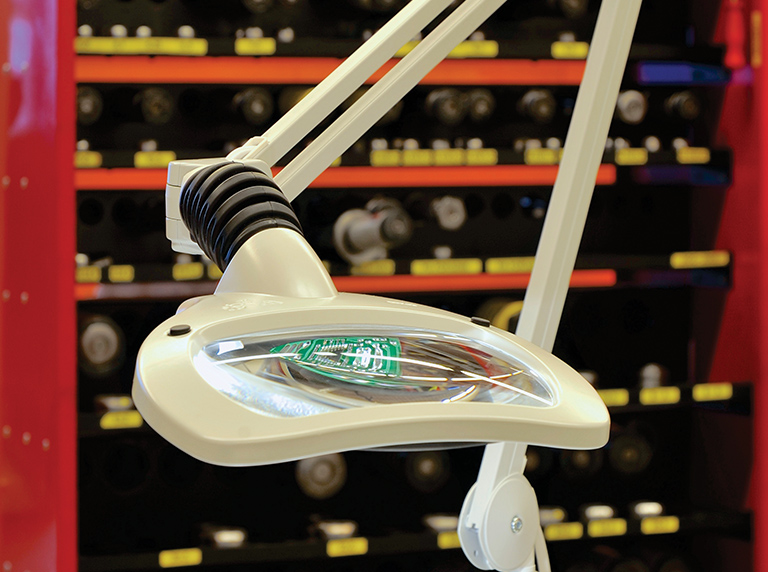

WAVE LED offers shadow-free magnification and 3D viewing with the independently controlled left and right illumination. The 3D-feature is especially useful when working with circuit boards and similar delicate objects in inspection and rework applications.
Flexible working positions
Our magnifiers are specially designed to maximize horizontal and vertical movement. They provide significant horizontal reach, and will always stay in the right position without drifting.
The arms are balanced by spring systems which ensure smooth and easy positioning – no knobs to tighten, nothing to adjust.
The flexibility of the self-balancing arm and friction-free joint between the head and arm makes exact positioning easy. The fully-enclosed neck design is ideal for mechanical, electronics, circuit boards, dental and jewelry and other precision applications.
Importance of light quality
Good lighting reduces the risk of health problems, increases safety, and enhances productivity.
Hence great importance is place on the light quality of our illuminated magnifiers, having powerful luminators with excellent light output. The quality and exact positioning of the light sources in relation to the lens allows for virtually shadow-free magnification and excellent color rendering capabilities.
Glass lens for superb clarity and comfort
The quality of WAVE LED starts with the high performance optical glass lens means superb clarity. The crown glass lens has a lower refractive index than plastic lens bench magnifiers, which reduces the loss of light in transmission through the lens and therefore less distortion of the image.
Less distortion makes for more comfortable viewing over longer periods of time.
Our bench magnifiers have a number of accessories to provide the ultimate flexibility and comfort.
|Self-Traction Accessory Yield System for use with KFM LED, WAVE LED, LFM LED, IFM, and Circus LED Magnifiers. 2” lens diameter (2.5” diameter including the silicon gasket frame).|
|50404||4 diopter STAYS Lens|
|50406||6 diopter STAYS Lens|
|50410||10 diopter STAYS Lens|
Floor Stand Trolley
|863mm (34″) Painted steel pole and cast iron base includes both casters and glides.|
|50036BK||Rolling Floor Stand, black|
|50036LG||Rolling Floor Stand, light grey|
|50036WT||Rolling Floor Stand, white|
|SPA025674||Extra weight for Rolling Floor Stand, white (required for Circus magnifiers)|
A-Edge Mount Bracket
|For mounting products to horizontal surfaces. Maximum 57mm (2.25”) opening.|
|60001BK||A Edge Mount Bracket, black|
|60001LG||A Edge Mount Bracket, light gray|
C-Surface Mount Bracket
|For permanent mounting to tables or other horizontal surfaces.|
|50005BK||C Surface Mount Bracket, black|
|50005LG||C Surface Mount Bracket, light grey|
|For use with 762mm (30”) arm magnifiers (USA only).|
|50010BK||FE Base, black|
|50010LG||FE Base, light gray|
|50010WT||FE Base, white|
AH Mount Braket
To discuss your particular requirements in further detail, please contact your local Vision Engineering representative.
|Lens||3.5 diopter or 5 diopter, 171mm x 114mm (6.75″ x 4.5″) rectangular white crown glass lens|
|Secondary lenses||4, 6 or 10 diopters STAYS secondary suction lenses can be attached to the crown glass lens.|
|Illumination||2 x 6W dimmable LED modules
13W total energy consumption
4600 lux at 297mm (11″) focal length
Correlated color temperature (CCT) is 4000°K
Dimmable step control -0-50-100%.
|Arm technology||Self-balancing arm with friction-free joint between the lamp head and arm. Heavy duty internal spring 1143mm (45″) parallel three-pivot K-arm (30″ arm for USA only) .|
|Mounting||Edge clamp. or other table clamps, integrated table mounts and trolley available. (For USA only weighted base available for 30″ arms)|
|Body material||WAVE LED steel arm, shade in aluminium, light grey.
WAVE LED ESD steel arm, shade in aluminium or black.
|Timer||Wave LED / LED ESD / LED UV is equipped with step dimming 0-50-100%.
Auto shut-off function after 4 or 9 hours.
|Power consumption||13 Watts|
|Power supply||Operating voltage 100V – 240V 50/60 Hz.|
|Accessories||Dust cover included. Refer to accessories tab for other options.|
This table provides a complete overview of the total magnification options available by adding secondary lenses to the illuminated magnifiers.
|Wave® LED, Circus LED (incl. ESD-Safe and UV models)|
|KFM™ LED, LFM LED, KFM, IFM (incl. ESD-Safe models)|
Can I have a higher diopter lens?
|There are two options available 3.5 and 5 diopter models, please specify which dioptre lens you wish when ordering. The lenses are fixed and not interchangeable.
To increase magnification futher there are a number of secondary lenses available (refer to maganification table in Technical section).
Generally 3 and 3.5 diopters provides the best balance between magnification and working distance for more industrial uses.
What is the benefit of a glass lens over a plastic lens?
|There are number of reasons that mineral glass lenses provide exceptional clarity and robustness over that of plastic lenses.
High quality glass mineral lens offers less distortion than plastic as it has a better surface form and refraction index, so allowing more light through providing better optical clarity of the image.
Plastic can be easily scratched and is less durable than glass and can be accidentally melted through contact with a hot source such as solder or splatter as well as being is less resistant to chemical and solvents.
Glass lenses bench magnifiers are usually higher quality than plastic lens versions and are more suited to industrial, scientific and manufacturing applications.
Can I easily adjust the illumination?
|Yes. There is 3 step dimmable illumination control. Selectable left, right, or full LED illumination for enhanced 3D viewing.|
What is a dioptre?
|A dioptre (UK), or diopter (US) is a unit of measurement of the optical power of a lens or curved mirror.
As the dioptre increases, the lens becomes thicker, making the object look bigger. The higher the dioptre, the more magnification the lens provides. A flat window has an optical power of zero dioptres, and does not converge or diverge light.
It is also important to note that the power of the lens is inversely related to the focal distance (working distance). Meaning, as the power of the lens increases, so the focal distance decreases, making it more difficult to perform tasks with high magnification lenses.
See Mantis Compact low magnification stereo microscope if higher magnification is required.
Magnification is calculated by simply dividing the dioptre by 4, then adding 1.
e.g. 3 dioptre lens = 3/4 + 1 = 1.75x
Therefore, objects viewed through a 3 dioptre lens will appear 175% bigger than normal.
